What is a Sequence Flow?

“A connecting object that shows the order in which activities are performed in a Process and is represented with a solid graphical line. Each Flow has only one source and only one target. A Sequence Flow can cross the boundaries between Lanes of a Pool but cannot cross the boundaries of a Pool.” ~ BPMN Specification

BPMN Notation

The BPMN specification defines the Sequence Flow element using the following description and notation:

ElementDescriptionNotation
Normal FlowNormal flow refers to paths of Sequence Flow that do not start from an Intermediate Event attached to the boundary of an Activity.
Uncontrolled FlowUncontrolled flow refers to flow that is not affected by any conditions or does not pass through a Gateway. The simplest example of this is a single Sequence Flow connecting two Activities.
Conditional FlowA Sequence Flow can have a condition Expression that are evaluated at runtime to determine whether or not the Sequence Flow will be used.
Default FlowFor Data-Based Exclusive Gateways or Inclusive Gateways, one type of flow is the default condition flow. This flow will be used only if all the other outgoing conditional flow is not true at runtime.

BPMN Notation: Sequence Flow

Understand Sequence Flows

Uncontrolled Flow vs. Controlled Flow

An activity with multiple incoming sequence flows is known as an uncontrolled flow. In the diagram below, the activity (Step D) will be instantiated when a token arrives from one of the sequence flows. The activity (Step D) will not wait for the other tokens to arrive. If another token arrives at the activity (Step D) from the same sequence flow or any other sequence flow, then a separate instance of the activity (Step D) will be created.

Uncontrolled Flow Uncontrolled Flow

The above diagram will create the following event logs as the token(s) flow through the process: Process Started, Start Event, Step A, Step B, Step C, Step D, Step D, Step D, End Event, End Event, End Event, Process Finished.

If the process requires a controlled flow, then the three sequence flows should converge into a gateway that precedes the activity (Step D).

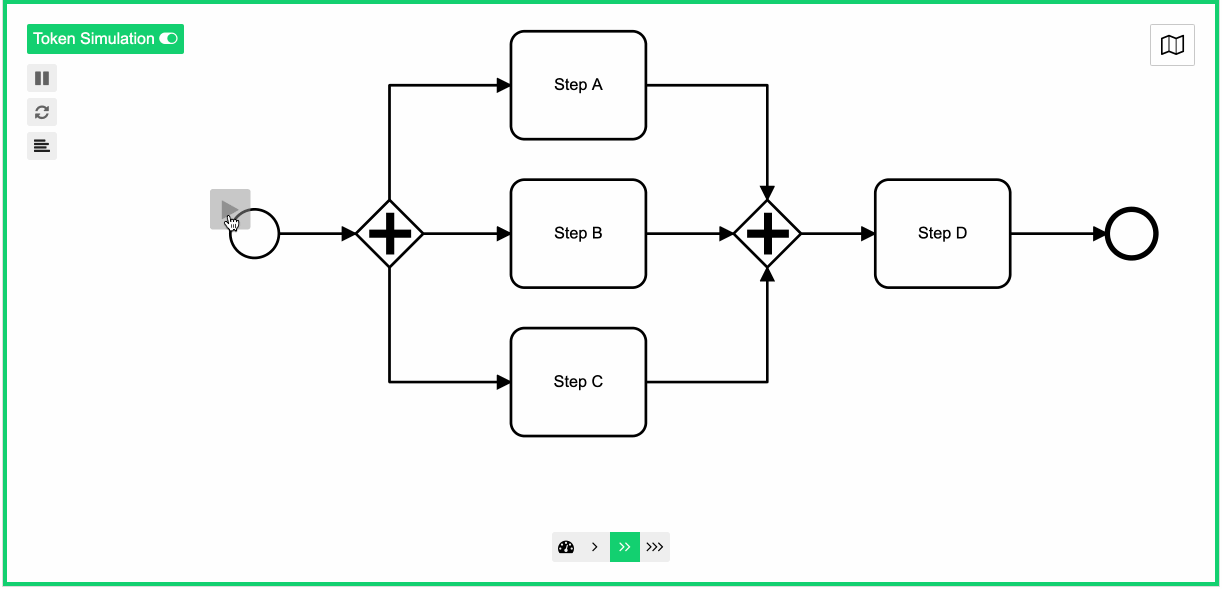

Controlled Flow Controlled Flow

The above diagram will create the following event logs as the token(s) flow through the process: Process Started, Start Event, Step A, Step B, Step C, Step D, End Event, Process Finished.

BPMN Standards & Guidelines

The difference between standard and guideline is that a standard is a level of quality or attainment while a guideline is a non-specific rule or principle that provides direction to action or behaviour. A standard are high in authority and needs to be adhered to versus a guideline is low in authority and guide one in setting standards or determining a course of action.

BPMN Standards

The BPMN Standards section contains a list of rules that are applicable to the BPMN element.

  • Sequence Flows MAY have an Activity as a target. A single activity can have multiple incoming Sequence Flows.
  • An Activity without an incoming sequence flow, the activity MUST be instantiated when the process is instantiated. The exception is Compensation and Event Subprocess Activities.

BPMN Guidelines

The BPMN guidelines section contains a list of optional rules that can be used as a guide.

*

Finally

This article provided a detailed explanation of the BPMN Sequence Flow element. Follow me on any of the different social media platforms, and feel free to leave comments.
