Plugins for Camunda Modeler

The article contains a list of free plugins that can be included in the Camunda Modeler.

This article lists the most popular Camunda Modeler plugins like Autosave, BPMN Token Simulation, Transaction Boundaries Visualization, Technical Tooltips, and many more. The plugins allow you to change the behaviour and appearance of Camunda Modeler. The article furthermore contains an explanation of how to install the plugins.

What is Camunda Modeler

Camunda Modeler is a user-friendly desktop application and is used to create and edit BPMN process diagrams and DMN decision tables. It is available on Windows, Linux and Mac operating systems. It is possible to view and edit BPMN 2.0 diagrams in parallel within multiple tabs. Camunda Modeler allows for the edit of execution-related BPMN 2.0 properties within the built-in properties panel.

It is possible to extend the functionality of Camunda Modeler via plugins. There are several open-source plugins available developed by the ever-growing Camunda Community.

How to install plugins

At present, the Camunda Modeler does not have a very seamless way to install plugins. Up until recently, the plugins were published by developers within their personal GitHub repositories. There are also several plugins available in the Camunda Community Hub.

The Camunda Modeler Plugins can be installed by cloning the Git repositories within the Camunda Modeler Plugins directory {MODELER_LOCATION}/plugins. You can also copy the directory to the plugin directory if you have cloned it to a different location. The plugin directory can be found here:

  • Windows: C:\Users\{user_name}\AppData\Roaming\camunda-modeler\resources\plugins
  • MacOS: /Users/{user_name}/Library/Application Support/camunda-modeler/plugins

On MacOS you have to create the plugin directory yourself.

The following list contains all the popular Camunda Modeler Plugins currently available:

1. AutoSave Plugin

Autosave is a feature where the application saves your file automatically every few seconds as you work. Camunda Modeler does not have an Autsave feature, and hence this plugin will save you valueable time.

Download Plugin: https://github.com/pinussilvestrus/camunda-modeler-autosave-plugin

Camunda Modeler Plugin Autosave

Camunda Modeler Plugin - AutoSave

2. Property Info Plugin

The Property Info plugin provides an overview of which properties are set per BPMN shape. There are several badges that illustrate whether Execution Listeners, Task Listeners, Extensions, Input & Output parameters or Field Injections properties are set.

Download Plugin: https://github.com/umb/camunda-modeler-property-info-plugin

Camunda Modeler Plugin Property Info

Camunda Modeler Plugin - Property Info

3. BPMN Lint Plugin

The BPMN Lint plugin allows you to validate your BPMN diagram against a set of configurable rules. This plugin uses the recommended bpmnlint and Camunda rules. The plugin evaluates rules like, “Conditional Flows”, “End Event Required”, “Fake Joins”, “Label Required”, etc..

Download Plugin: https://github.com/camunda/camunda-modeler-linter-plugin

Camunda Modeler Plugin BPMN Lint

Camunda Modeler Plugin - BPMN Lint

4. Tooltips Plugin

The Tooltip plugin adds tooltips to the various BPMN elements. For example, the tooltip displays the properties and values of the BusinessRuleTask once the mouse hovers over the BPMN activity. The properties include “Implementation”, “Decision”, “Binding”, “Result Variable”, etc. It also displays information about conditional sequence flows if the mouse hovers over an Exclusive Gateway.

Download Plugin: https://github.com/viadee/camunda-modeler-tooltip-plugin

Camunda Modeler Plugin Tooltip

Camunda Modeler Plugin - Tooltip

5. Token Simulation Plugin

The Token Simulation plugin allows you to simulate the tokens and how they will flow through the BPMN process. The plugin beautifully simulates the splitting of a token at the parallel gateway, and also allows you to spawn new tokens at the boundary events.

Download Plugin: https://github.com/bpmn-io/bpmn-js-token-simulation-plugin

Camunda Modeler Plugin Token Simulation

Camunda Modeler Plugin - Token Simulation

6. Color Picker Plugin

The Color Picker plugin allows you to change the color of any of the BPMN elements.

Download Plugin: https://github.com/camunda-community-hub/camunda-modeler-plugin-color-picker Camunda Modeler Plugin Color Picker

Camunda Modeler Plugin - Color Picker

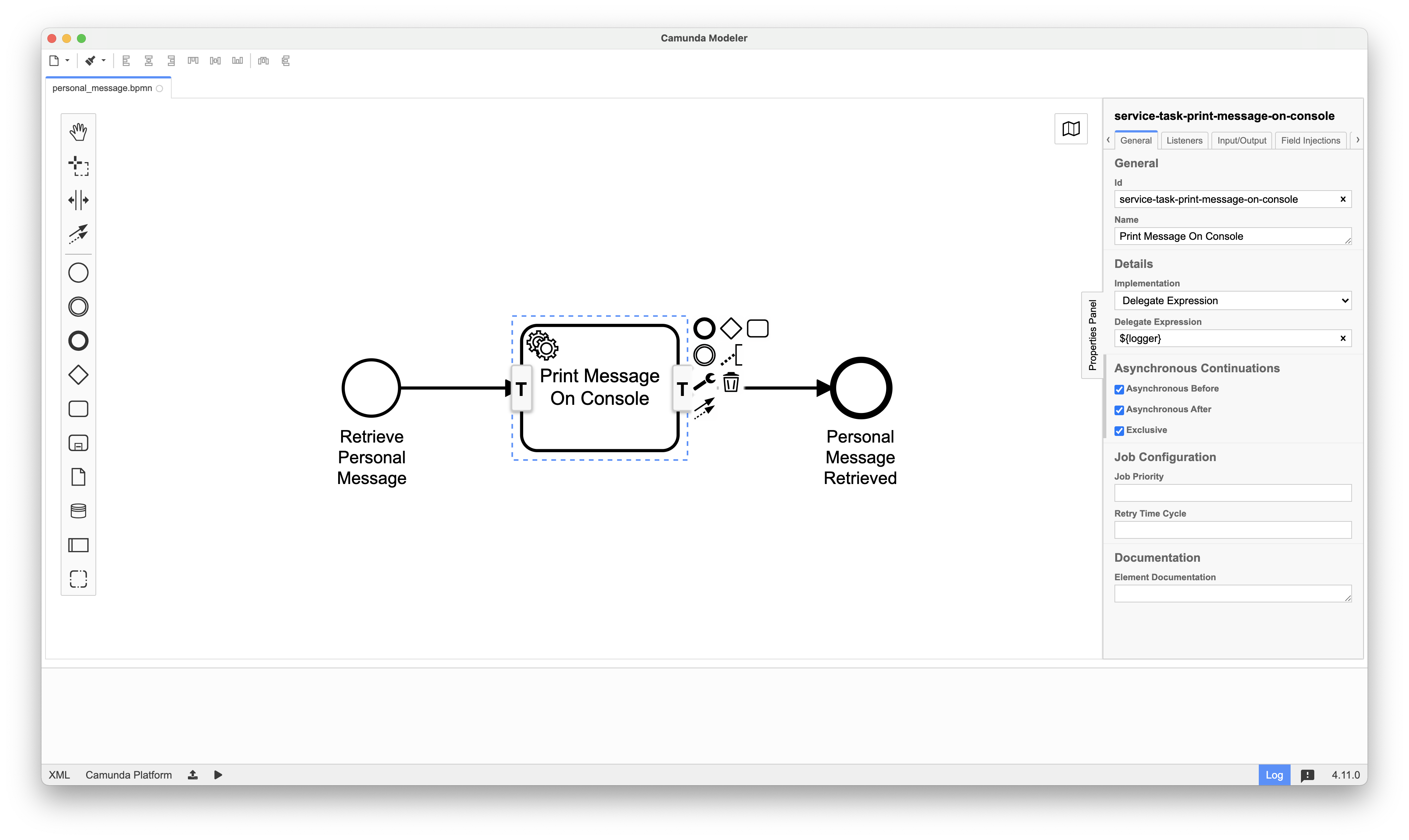

7. Transaction Boundaries Plugin

The Transaction Boundaries plugin visualizes the transaction boundaries on the BPMN process model. This is set by the Asynchronous Continuation properties (Asynchronous Before & Asynchronous After).

Download Plugin: https://github.com/camunda/camunda-modeler-plugins/tree/master/camunda-transaction-boundaries-plugin Camunda Modeler Plugin Transaction Boundaries

Camunda Modeler Plugin - Token Simulation

List of Other Plugins

The list of Camunda Modeler plugins is growing by the day. Here are some more useful plugins:

Camunda Modeler Plugin Templates

If you interested in creating your own Camunda Modeler Plugin, use the following as starting point:

See the Camunda Modeler Plugin documentation for more information.

Finally

The Camunda community is growing and more Modeler plugins are greated everyday. This article will be updated as new plugins are created. Follow me on any of the different social media platforms and feel free to leave comments.
